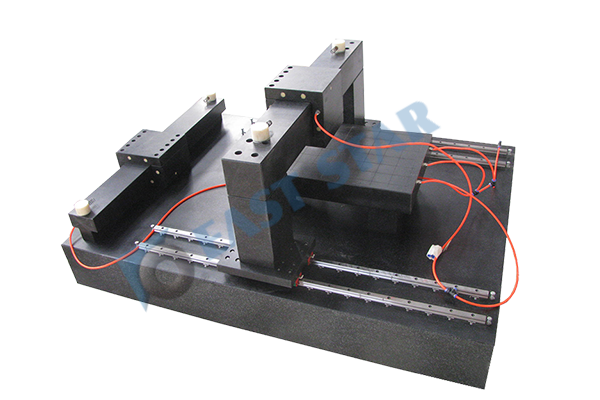

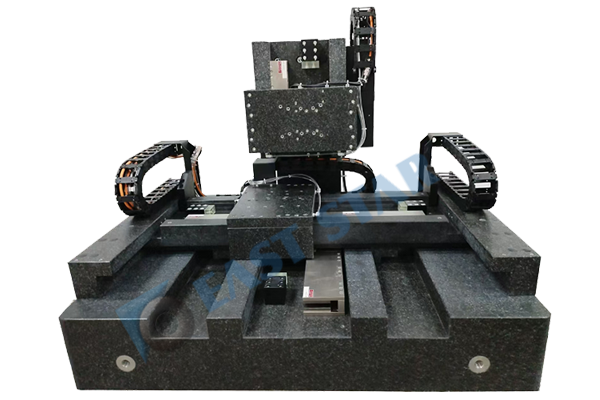

The Granite air bearing parts is a high-precision granite mechanical component, primarily utilized in high-end manufacturing and precision measurement industries, encompassing fields such as semiconductors, precision measurement, optoelectronics, precision instruments, aerospace and more.
Precautions for use:
1. The Granite air bearing parts must be used in a constant temperature, constant humidity, and dust-free environment, with the ambient temperature controlled at 20±1℃ and the humidity maintained at 50%–60%.
2. When starting up, follow the sequence of first ventilating and then electrifying; when shutting down, follow the sequence of first powering off and then shutting off the ventilation.
3. The working air source must undergo multi-layer filtration to ensure the absence of oil, water, and impurities, thereby guaranteeing the stability and reliability of the air floatation system.
4. Air pressure specification: For small products, use an air pressure of 0.35–0.4MPa; for large products, use an air pressure of 0.4–0.45MPa. The air pressure should be stable and constant. It is strictly prohibited to operate under the condition of no air or insufficient air pressure.
5. It is prohibited to place sharp objects on the platform surface to prevent scratching the surface and affecting the accuracy and appearance.
6. When installing parts, handle them gently and strictly avoid impacting or knocking the air-bearing guide rail and slider.
7. This product features a high-precision coupling structure, with core components processed using precision grinding technology. All components are non-interchangeable.
Strictly following the above usage specifications can effectively ensure the precision stability and service life of the granite air floating platform, providing long-term reliable motion and reference support for high-end precision manufacturing, testing, and assembly scenarios. Standardized operation and meticulous maintenance are key to maximizing the excellent performance of high-precision air floating equipment.
