What Are 4 Types of Measuring Tools?

In the world of precision engineering, manufacturing, quality control, and mechanical design, accurate measurement is absolutely essential. Whether it’s for confirming product dimensions, aligning mechanical components, or calibrating industrial equipment, the measuring tools used must provide exact results to ensure product integrity and reliability. Among all the tools available today, Standard Granite Measuring Instruments stand out for their unmatched stability, durability, and precision.

This article will explore the four main types of measuring tools—linear, angular, surface, and comparison measuring instruments—while giving in-depth attention to Standard Granite Measuring Instruments and their significance. We'll analyze their performance, compare them with other instruments, and answer FAQs that align closely with real Google search user intent. Additionally, the article includes product comparisons, relevant industry applications, and actionable insights for decision-makers.

Understanding the Importance of Measuring Tools

The accuracy and precision provided by measuring tools directly influence product quality, safety, cost efficiency, and customer satisfaction. Every component in a mechanical or manufacturing environment must meet tight tolerances. Thus, selecting the right measurement tools is not only a technical necessity but also a competitive advantage.

The Core Categories: 4 Types of Measuring Tools

There are hundreds of tools in metrology, but all can generally be classified into four primary types:

1. Linear Measuring Tools

Linear measuring tools are used to determine the straight-line dimensions—length, width, height, or depth—of an object. These tools are foundational in virtually every engineering or fabrication environment.

Common Linear Measuring Tools:

Tool Name	Material	Accuracy Range	Use Case
Steel Ruler	Stainless Steel	±0.5 mm	Basic measurement tasks
Vernier Caliper	Steel/Plastic	±0.02 mm	Internal/external dimensions
Micrometer	Steel	±0.01 mm	High precision small measurements
Height Gauge	Steel/Granite	±0.02 mm	Vertical measurements

Role of Standard Granite Measuring Instruments:

In linear measurements, Standard Granite Measuring Instruments such as granite surface plates and granite height gauges provide a stable base or reference point. Their superior dimensional stability, thermal resistance, and non-corrosive nature make them ideal for ensuring repeatable linear measurements. In fact, more than 80% of precision workshops rely on Standard Granite Measuring Instruments for calibration and inspection of linear tools.

2. Angular Measuring Tools

These tools are used to measure or inspect angles. Accurate angle measurement is critical for machining, assembly, and quality control in fields like aerospace, tooling, and fabrication.

Common Angular Measuring Tools:

Tool Name	Accuracy	Use Case
Protractor	±1°	Basic angle measurements
Bevel Protractor	±5′ (minutes)	High-precision angular inspection
Sine Bar	±1′ (minute)	Very accurate angle verification
Angle Gauge Blocks	±1′ (minute)	Calibration of angular tools

Role of Standard Granite Measuring Instruments:

Angular tools often require a stable, flat, and level surface to ensure accurate measurement. Granite angle plates and granite squares, which fall under Standard Granite Measuring Instruments, serve as reliable support structures in angular inspection. The rigidity and zero-warp characteristics of granite ensure that angular readings are not skewed by surface imperfections.

3. Surface Measuring Tools

Surface inspection is crucial to assess the flatness, smoothness, and profile of components. Surface measurements impact the performance of mechanical seals, contact surfaces, and assemblies.

Common Surface Measuring Tools:

Tool Name	Feature	Application
Surface Plate	Ultra-flat base	Calibration and inspection base
Surface Roughness Tester	Electronic/digital analysis	Measuring texture of surfaces
Straight Edge	Simple flatness reference	Flatness and alignment checking
Dial Indicator with Stand	Precise deflection measurement	Measuring surface deviation

Role of Standard Granite Measuring Instruments:

Here, Standard Granite Measuring Instruments dominate the field. Granite surface plates, granite straight edges, and granite parallels are used as the benchmark for nearly all surface measurement activities. Due to granite’s superior flatness retention (typically within 3–10 microns depending on grade), they provide a long-lasting and consistent reference plane. This makes Standard Granite Measuring Instruments the foundation for reliable surface measurement.

4. Comparison Measuring Tools

These tools don’t give direct measurements but rather compare a feature against a known standard or setting. They are widely used in batch production, inspection lines, and calibration labs.

Common Comparison Measuring Tools:

Tool Name	Comparison Basis	Use Case
Go/No-Go Gauges	Limit dimensions	Pass/fail inspection in production
Dial Test Indicator	Zero-reference	Checking deviation from a standard
Comparator Stands	Fixed standard support	Holding indicators during inspection
Gage Blocks	Calibration standard	Tool calibration and precision setup

Role of Standard Granite Measuring Instruments:

Granite comparator stands and granite bases are essential components of comparison measuring systems. The minimal thermal expansion and vibration dampening properties of granite make these tools essential in sensitive comparator setups. More importantly, when paired with high-resolution digital indicators, Standard Granite Measuring Instruments help achieve sub-micron repeatability.

Benefits of Standard Granite Measuring Instruments Across All Tool Types

• Thermal Stability: Minimal expansion due to temperature change ensures measurements remain accurate in varying environments.

• Corrosion Resistance: Unlike steel, granite doesn’t rust, which preserves surface accuracy over years of usage.

• High Wear Resistance: Maintains flatness and geometry even after prolonged use.

• Non-Magnetic Properties: No magnetic interference during electronic or sensitive inspections.

• Cost-Efficiency Over Time: While the initial investment may be higher, the longevity and low maintenance reduce long-term cost.

Table: Comparison Between Standard Granite and Steel Measuring Tools

Feature	Granite Instruments	Steel Instruments
Thermal Stability	Excellent (low expansion)	Moderate to Poor
Corrosion Resistance	High	Low (requires protection)
Surface Flatness Retention	Excellent	Degrades faster over time
Maintenance	Low	Medium to High
Lifespan	10–20 years+	5–10 years (avg.)

Applications of Standard Granite Measuring Instruments

Standard Granite Measuring Instruments are not limited to metrology labs; they are widely used in:

• Precision Machining Workshops

• CNC Machining Calibration

• Automotive Manufacturing Lines

• Aerospace Component Testing

• Medical Device Manufacturing

• Robotic Arm Calibration

• 3D Printing Quality Assurance

In fact, according to a 2023 survey from the Precision Tooling Institute, over 75% of ISO-certified manufacturing facilities incorporate at least one Standard Granite Measuring Instrument in their daily QC process.

Selection Tips for Granite Measuring Tools

To ensure you select the right granite measuring instrument:

1. Check for Certification: Ensure plates and tools are certified to standards like DIN 876 or ASME B89.3.7.

2. Choose the Right Grade: Use Grade AA for labs, A for workshops, and B for general use.

3. Evaluate Size & Support: Ensure it matches your part dimensions and is supported correctly to prevent sagging.

4. Look for Accessories: Add-ons like clamps, riser blocks, and indicator holders enhance utility.

5. Consider Brand Reputation: Brands like Starrett, Mitutoyo, and Tru-Stone are known for quality.

The Role of Automation and IoT

Emerging trends like smart metrology and Industry 4.0 are pushing for automation even in measuring tasks. Standard Granite Measuring Instruments are now being paired with digital indicators, coordinate measuring machines (CMMs), and robotic arms for real-time data capture and cloud analysis. This hybrid approach ensures that granite remains a timeless material even in the future of smart factories.

FAQs

What are Standard Granite Measuring Instruments?

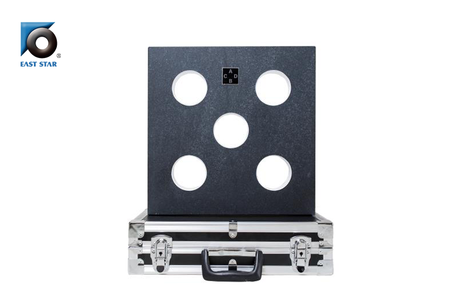

Standard Granite Measuring Instruments are precision metrology tools made from black granite. They include surface plates, angle plates, straight edges, and comparator stands that serve as reference planes for high-accuracy measurements.

Why is granite preferred over steel in measurement tools?

Granite is more dimensionally stable, corrosion-resistant, and non-magnetic. These properties ensure higher measurement accuracy over time compared to steel.

How often should granite surface plates be calibrated?

For high-usage environments, calibration every 6 to 12 months is recommended. For low-usage settings, an 18-month interval may be acceptable.

Are granite tools more expensive than steel?

Initially, yes. But due to their long lifespan and minimal maintenance, they are more cost-effective in the long term.

How can I maintain my granite measuring instruments?

Keep them clean, avoid dropping heavy objects, use covers when not in use, and store in temperature-stable environments. Use lint-free cloths for cleaning and avoid oil-based products.

Can I use a granite surface plate for CNC calibration?

Yes, granite plates are frequently used as the reference base for calibrating CNC machines and their components.

Conclusion

Understanding the four main types of measuring tools—linear, angular, surface, and comparison—is crucial for any industry involved in manufacturing, inspection, or design. Standard Granite Measuring Instruments are central to all these measurement categories due to their unparalleled stability and accuracy. With growing demand for precision in modern industries and the integration of smart systems, these instruments remain the gold standard in dimensional metrology.

If you're setting up a workshop, running a QA lab, or looking to upgrade your current toolkit, investing in Standard Granite Measuring Instruments is a forward-thinking decision that ensures your measurements remain consistent, reliable, and future-proof.
